SJ-10060-SK6812 RGBW SJ-10060-SK6812 RGBW SJ-10060-SK6812 RGBW
SJ-10060-SK6812 RGBW
■. It can be used for KTV decorative lights.

■. It can be used for home lighting decoration.

■. It  can be used to create LED advertising logo.

■. It can be used for stage lighting


Digital Addressable SK6812 ws2812b RGBW/RGBWW/RGBCW 60leds/m flexible rgbw led tape rope light


1.Control IC SK6812 inserted in 5050 R , G, B, W 4 in one LED diode , supporting numerous color-change effects , Same as your guess , the white temperature can be customized---Warm white :2800-3200K ;  Natural white : 4000-4500K ;  Cool white :6000-6500K
2. White PCB and black PCB optional , black top cover 5050 RGBW LED and common 5050 RGBW LED workable .
3. ws2812b flexible rgbw led tape rope light comes in 5meters per reel with a 3Pin JST SM connector on both end and separated Power / Ground Wires . Customized length is available as well .
4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 16.67 mm.
5. 60LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .
6. 10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon tube for waterproof version .


P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-SK6812RGBW 1000*10 SK6812-smd5050 60  Pixel/m 420 160° DC5v 14.4W P20/65


● Wire Define
There is 3 Pin JST SM female/male connector on both end for signal input/output ;
Green : Date ;
Red : +5V ;
Yellow: Ground

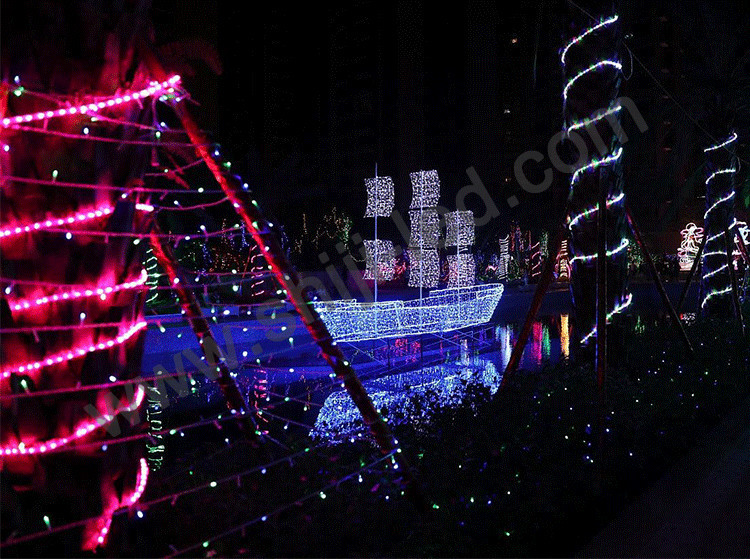

Project case
