Digital LED Pixel Light 10mm DC5V Digital LED Pixel Light 10mm DC5V Digital LED Pixel Light 10mm DC5V
Digital LED Pixel Light 10mm DC5V
P/N                                     SJ-10-SK6812
Diameter/mm                       10mm
LED Type                             SMD 5050 RGB
LED/pcs                              1leds/pcs
IC Type                                SK 6812
Luminous                             7LM
Angle                                   160°
Voltage                                DC5V
Wattage/pcs                        0.3W/pcs
IP Rate                                IP65



1. Individually control : 1pcs LED pixel & 1 IC. Control IC SK6812 inserted in SMD5050 rgb led.

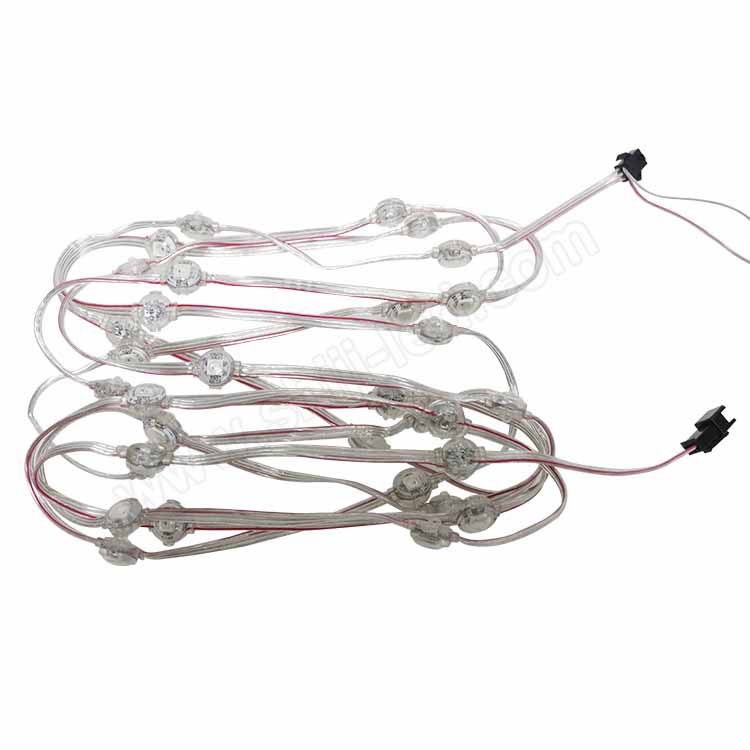

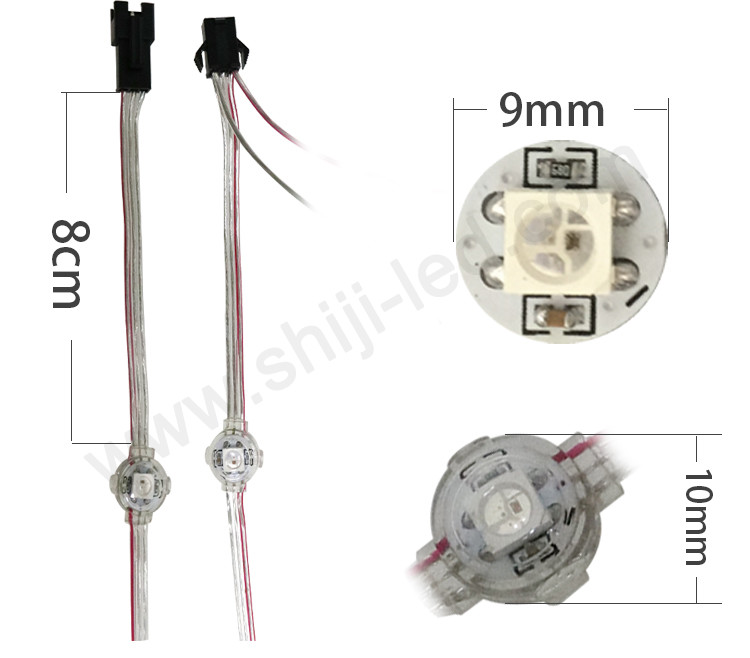

2.20pcs/chain with 8cm wire length between each LED, wire size:20AWG, can be custom-made.
3. It used a silicon case make waterproof by inject A/B Epoxy or silicon Easy to install.
4. DC5V power requirement only(do not exceed 6VDC or short circuit) - no polarity protection,

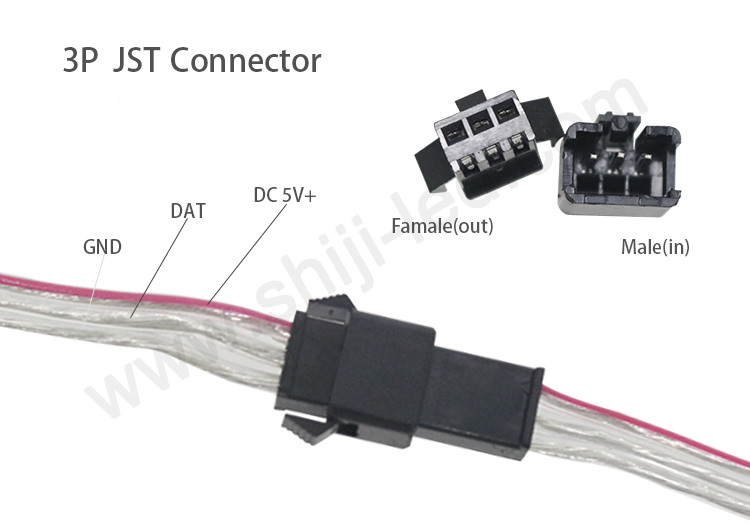

5. 3 Pin JST SM connector (non-waterproof) soldered in each end of string,, also can be waterproof connector.
6. Extra 2 wires for power supply to avoid voltage drop.3 wire version: +5V DAT GND ( ws2811),

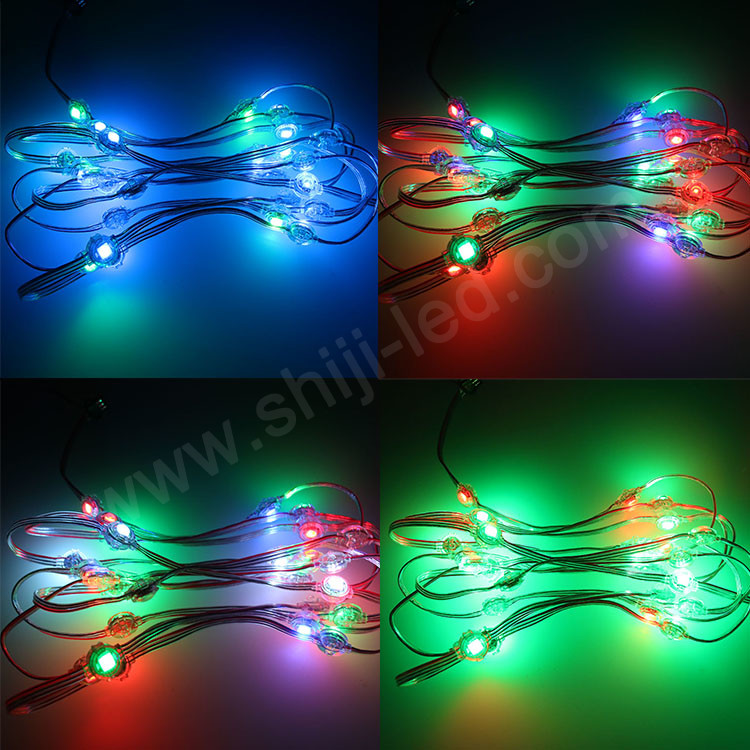

7.Addressable lights, you can set to any color or animate, like running water, chasing, scanning, flashing, etc..
8. Controller system: SD card controller, DMX controller, Artnet.


P/N diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-10-SK6812 10mm SMD 5050 RGB SK 6812 7 160° DC5V 0.3w IP20/65



Project case

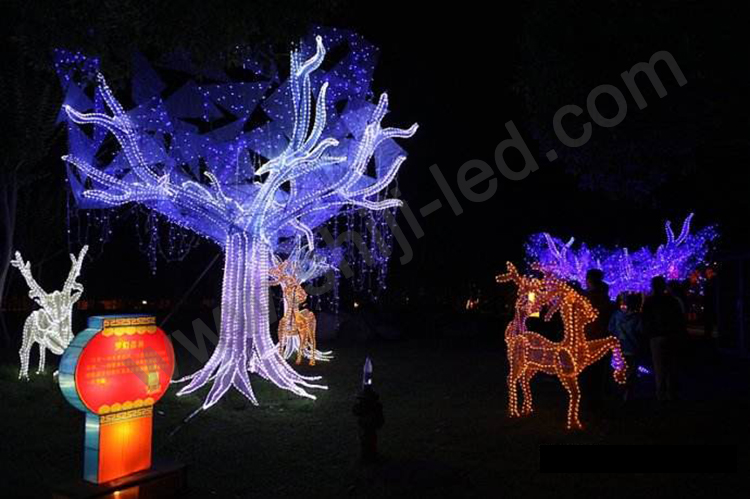

-Led Amusement lamp is widely used in Ferris wheel, park, theme park, carnival, party,

-Super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank,

-Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.
