120mm
120mm DMX RGB LED Pixel Light DC24V 120mm DMX RGB LED Pixel Light DC24V 120mm DMX RGB LED Pixel Light DC24V
120mm DMX RGB LED Pixel Light DC24V
P/N                                       SJ-120-DMX
Diameter/mm                      120mm
LED Type                              RGB SMD 5050
LED/pcs                                18leds/pcs
IC Type                                 DMX512
Luminous                             126LM
Angle                                    160°
Voltage                                 DC24V
Wattage/pcs                         4.32W/pcs
IP Rate                                  IP67




SJ-120-DMX

Features

1. 120mm diameter LED point light source.

2. The shell has two kinds of plastic and aluminum alloy. The color is black or metallic color.

3. It comes with DMX512 IC, which needs to be written and edited before use.

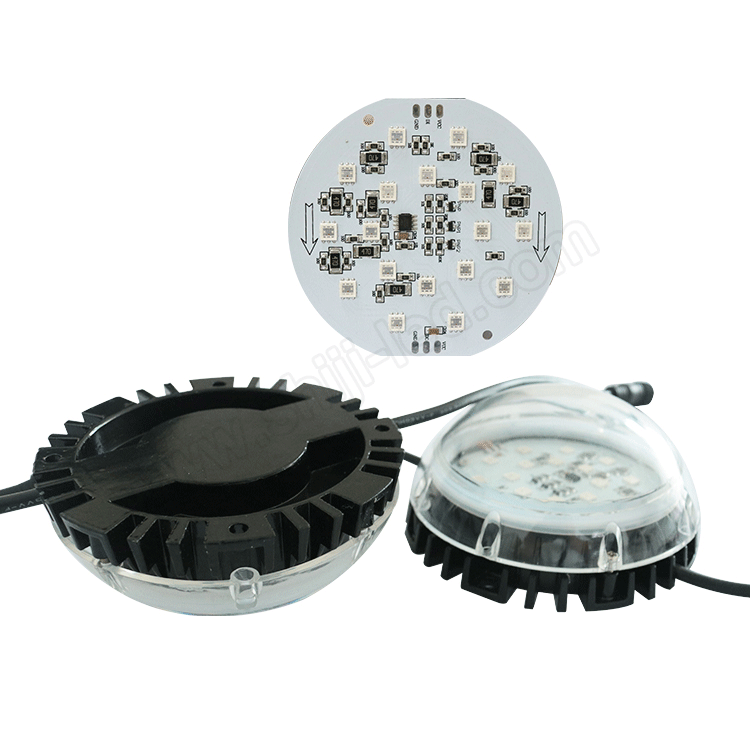

4. There are 18 SMD 5050 RGB LEDs inside each LED.

5. None of the LEDs have independent input and output ports.

6. The internal glue is waterproof and can be used outdoors, IP67.

7. Mainly used in building lighting, recruitment, etc.

Parameter

P/N Size/mm LED Type LEDs/pcs Luminous Angle Voltage Wattage/m IP Rate
SJ-120-DMX 120mm SMD 5050 RGB 18pcs 126LM 180° DC24V 4.32 IP67

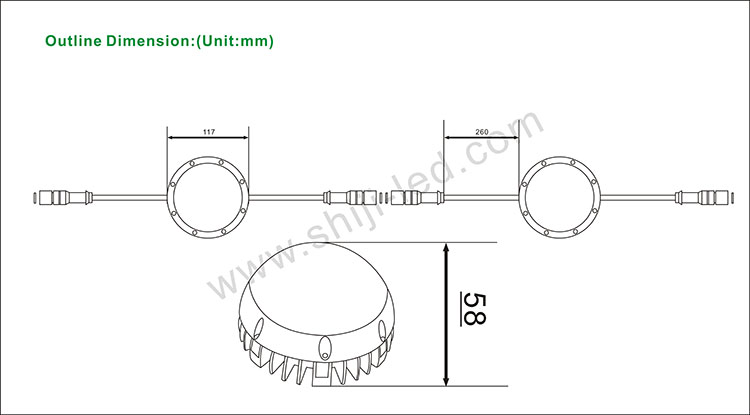

Dimension

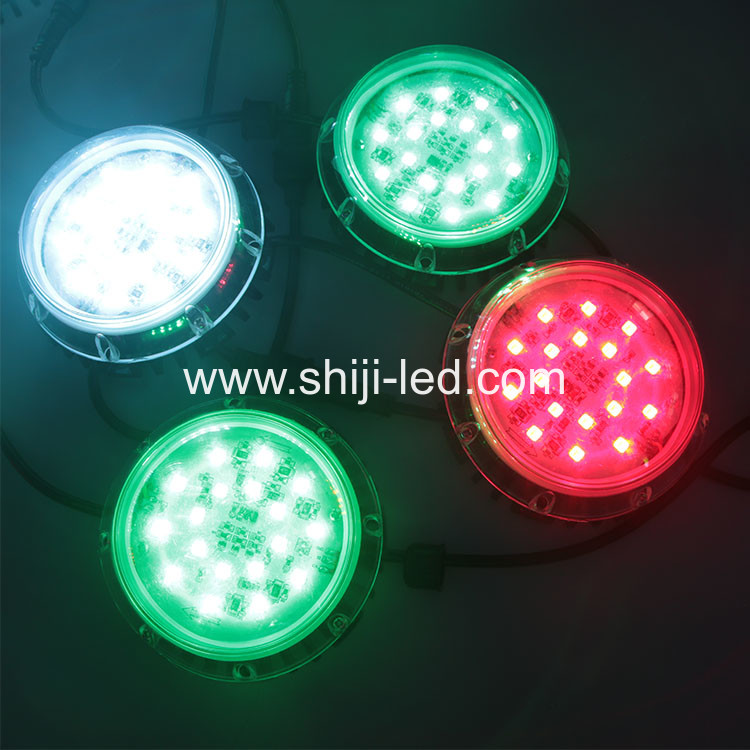

Effect:

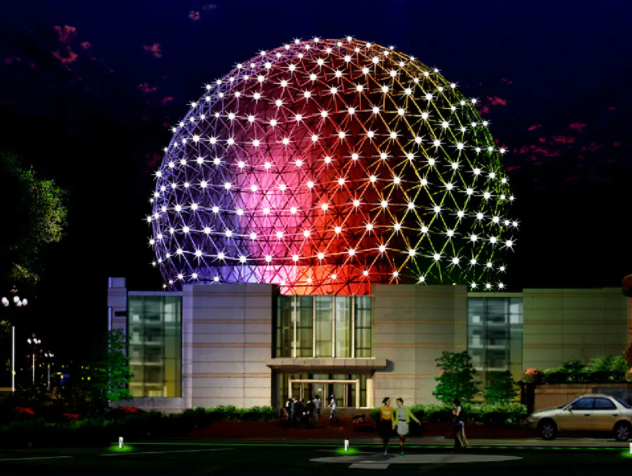

Project case
