SJ-2618-DMX SJ-2618-DMX SJ-2618-DMX

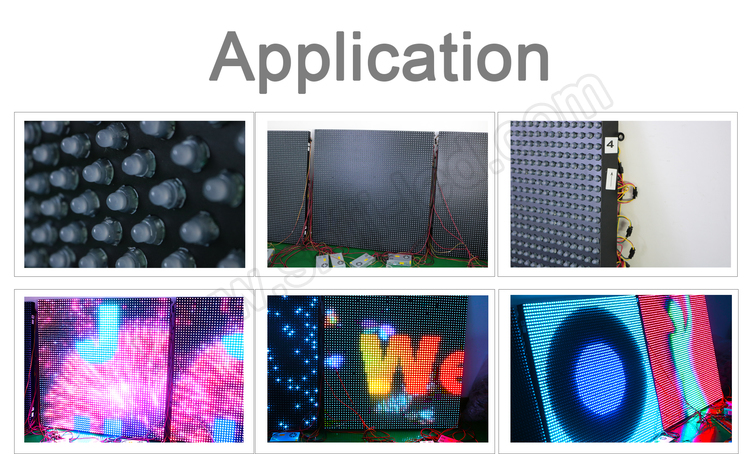

■. It can be used for KTV decorative lights.

■. It can be used for home lighting decoration.

■. It  can be used to create LED advertising logo.

■. It can be used for stage lighting decoration.

■. It can be used for entertainment lighting

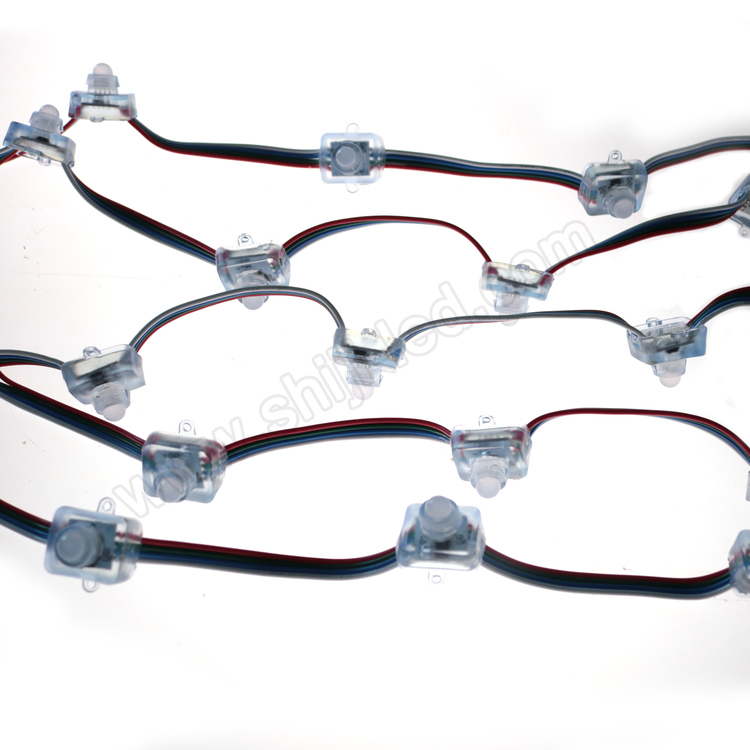

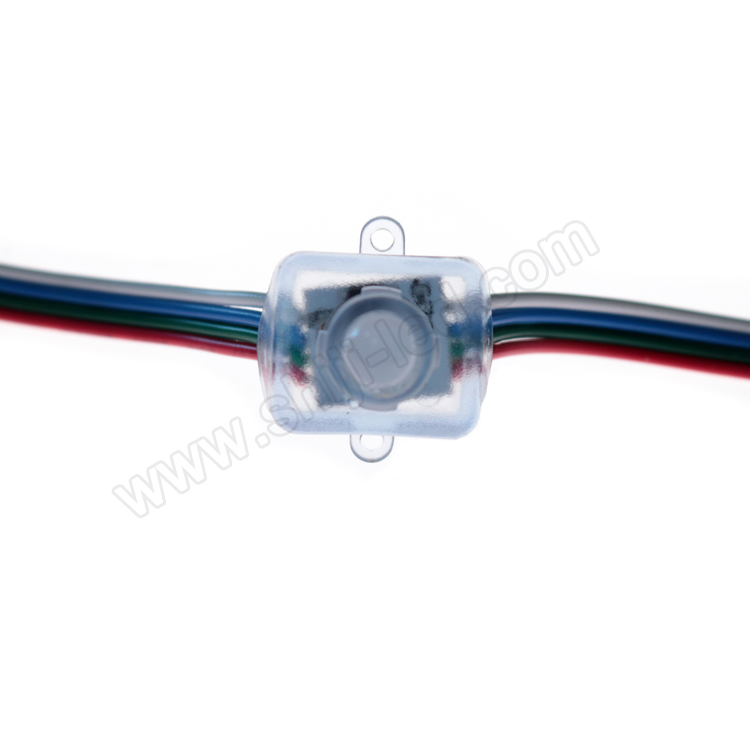

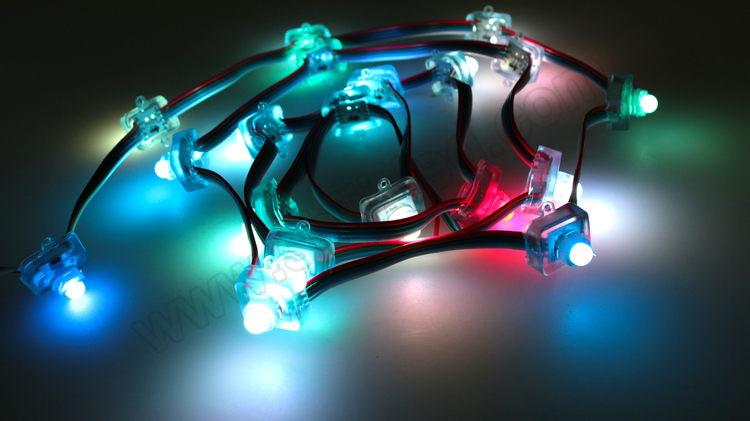

DMX 26mm RGB led pixel string light


1. Digital led pixel string for outdoor application.
2. Each pixel individually control. Control IC DMX512 included, compatible with Artnet and DMX, support numerous color-changing effects.
3. 50pcs per chain with 8 cm space (standard length) but it‘s could customization.

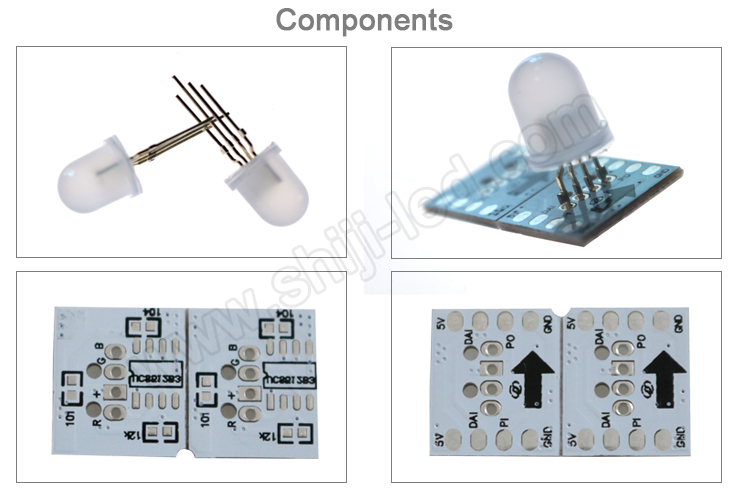

4. There is 1pcs super bright F8 RGB LED inside of each lamp.

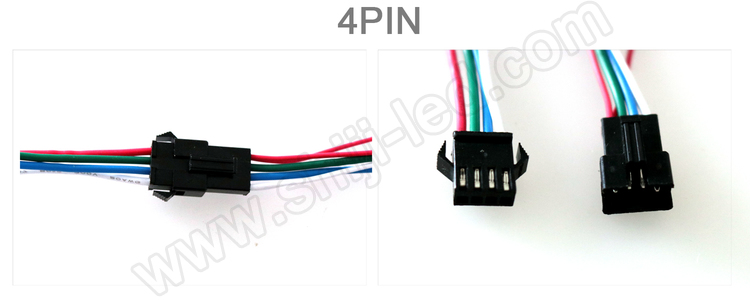

5. There is a pair of 4pin JST SM female & male connector on both ends for signal transfer, the male with pin is input. Also can be waterproof connector.

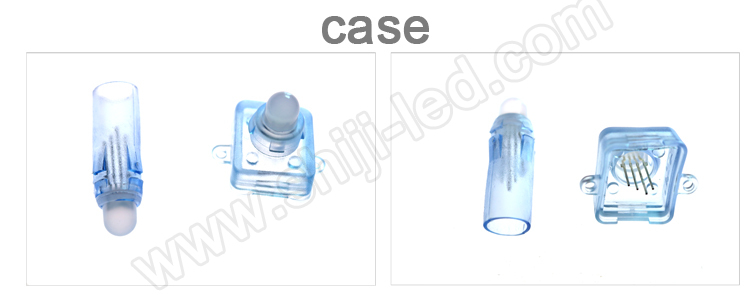

6. It used a silicon case make waterproof by inject A/B Epoxy or silicon. The whole string light is waterproof IP68.
7. Low voltage 5VDC input, don’t over 6V or short circuit - no polarity protection, otherwise you can destory the entire led light.
8. Controller System:SD controller , DMX controller , Artnet and so on.

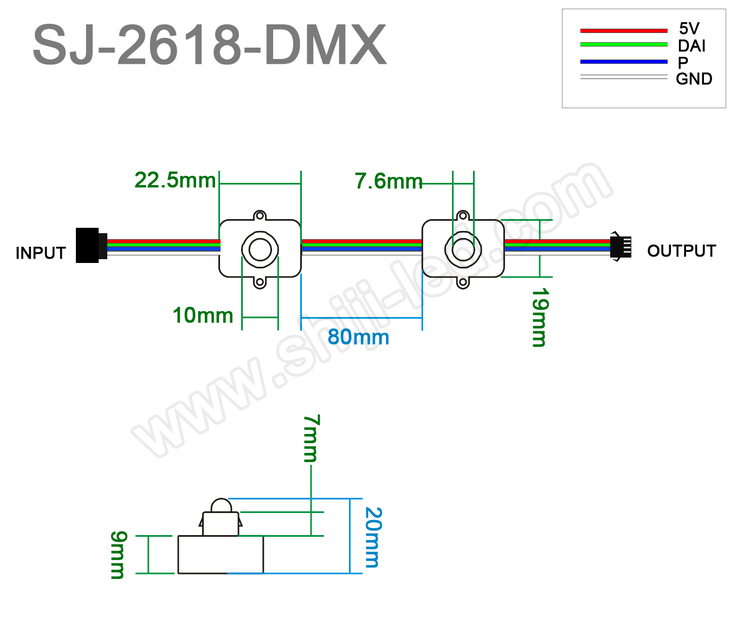

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
W23 * L19mm
F8  RGB 1 Pixel/m 8 160° DC5v 0.3w IP68



Project case
