30mm
UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights

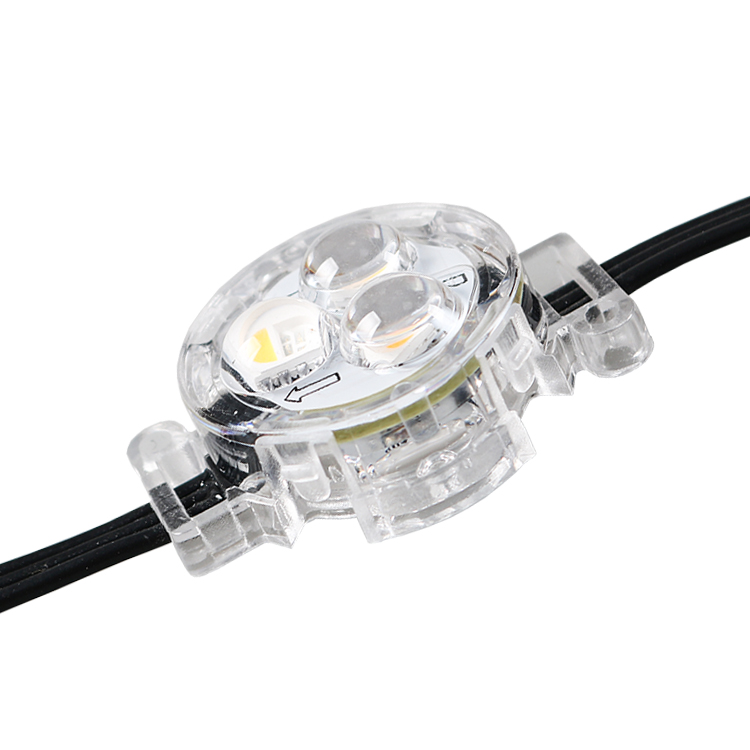

UCS2904 30mm Lens digital waterproof outdoor use RGBW pixel led string lights
Part NO SJ-30-2904-RGBW-12V
Lighting Source 3PCS SMD5050 RGBW LED
Beam Angel 140 degree
Operate Voltage DC12V
Consumption Watt/PC 1.02Watt (max)
Diameter (mm) 30 mm
Pixel pitch 10cm, can be customized
IC chip UCS2904
Quantity 20pcs/string
Waterproof Grade IP67
Lifetime 50000H
Working temperature -20℃-60℃
Storage temperature -30℃-80℃


SJ-30-2904-RGBW


Features

1. Digital led pixel string for outdoor application.

2. Each pixel individually control. UCS2904 IC included, support numerous color-changing effects.

3. 20pcs per chain with 8 cm space (standard length) but it‘s could customization.

4. There is 3pcs super bright smd5050 RGBW LED inside of each lamp. The color temperature of W can be customized: warm white 2700-3200K, neutral white 4000-4500K,  cool white : 6000-6500K.

5. The connectors are waterproof, the Male with Pin is Input.

6. The whole LED light is waterproof IP67

7. Controller System:SD controller , DMX controller , Artnet and so on.

Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-30-2904-RGBW-12V 30mm / UCS2904 / 140° DC12V 0.96w IP67

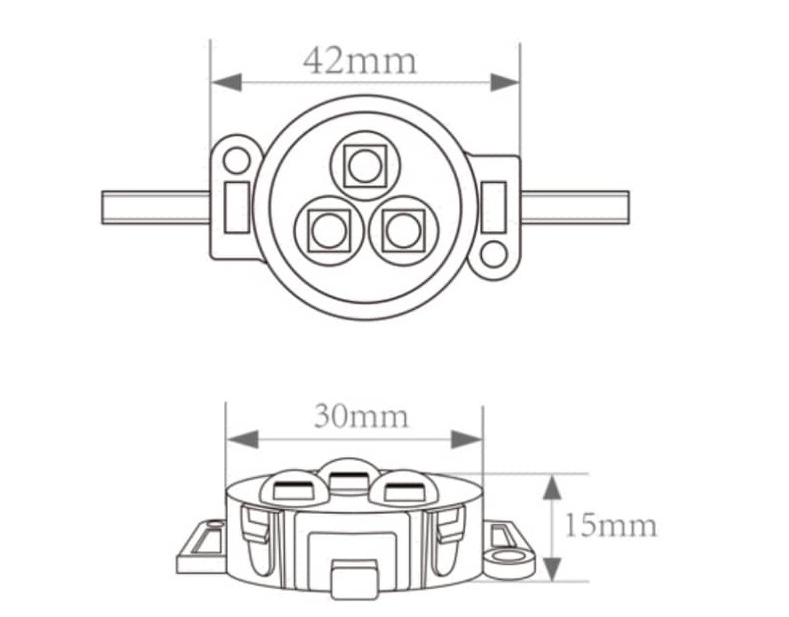

Dimension
