IP67 12V 40mm Ball GS8208 G40 Milky White Magic BGR Pixel Programmable Led Christmas String Light
Part NO SJ-G40-GS8208
Lighting Source 1PCS SMD5050 BGR Diode
Beam Angel 360 degree
Operate Voltage DC12V
Consumption Watt/PC 0.2 Watt (max)
Size (mm) Diameter 40mm
Material PC shell /Copper
IC chip GS8208 full color
Length 50 leds/string
Waterproof Grade IP67
Lifetime 50000H
Working temperature -20℃-60℃
Storage temperature -30℃-80℃
Certificate CE&RoHS
Warranty 2 years


SJ-G40-GS8208

Features

1.G40 LED Christmas light for outdoor application.

2.Each pixel individually control.  GS8208 IC inserted in SMD 5050 BGR Led, any pixel defective will not affect signal transfer, unless two consecutive adjacent pixels are defective.

3.50pcs lamps per chain with 15 cm space (standard length), customized is workable.

4.There is 1 pcs super bright SMD5050 LED inside of each lamp.

5.The PC case is optical design to outlet the LIGHT from different angel.

6.The connectors are waterproof, the Male with Pin is Input.

7.The whole string light is waterproof IP67

8.Controller System:SD controller , DMX controller , Artnet and so on.

Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-G40-GS8208 40MM / GS8208 / 360° DC12V 0.2w IP67

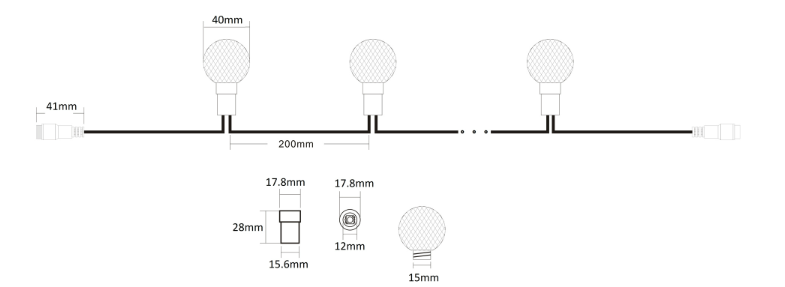

Dimension
