50mm LED Entertainment Light 12leds DC24V 50mm LED Entertainment Light 12leds DC24V 50mm LED Entertainment Light 12leds DC24V

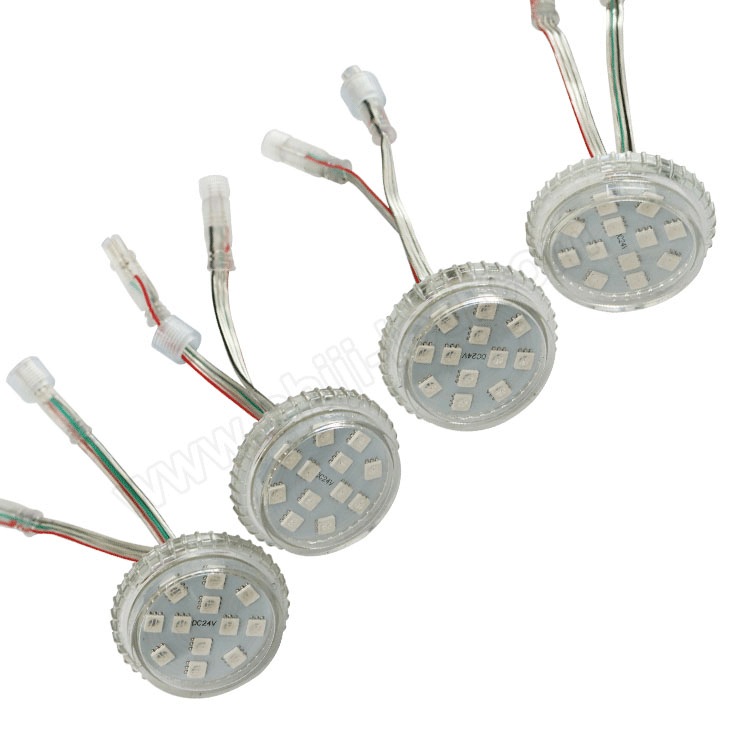

50mm LED Entertainment Light 12leds DC24V
P/N                                       SJ-5012-24v
Diameter/mm                       50mm
LED Type                             SMD 5050 RGB
LED/pcs                               12leds/pcs
IC Type                                UCS 2903
Luminous                             84LM
Angle                                   160°
Voltage                                DC24V
Wattage/pcs                        2.88W/pcs
IP Rate                                IP67




SJ-5012-24V


Features

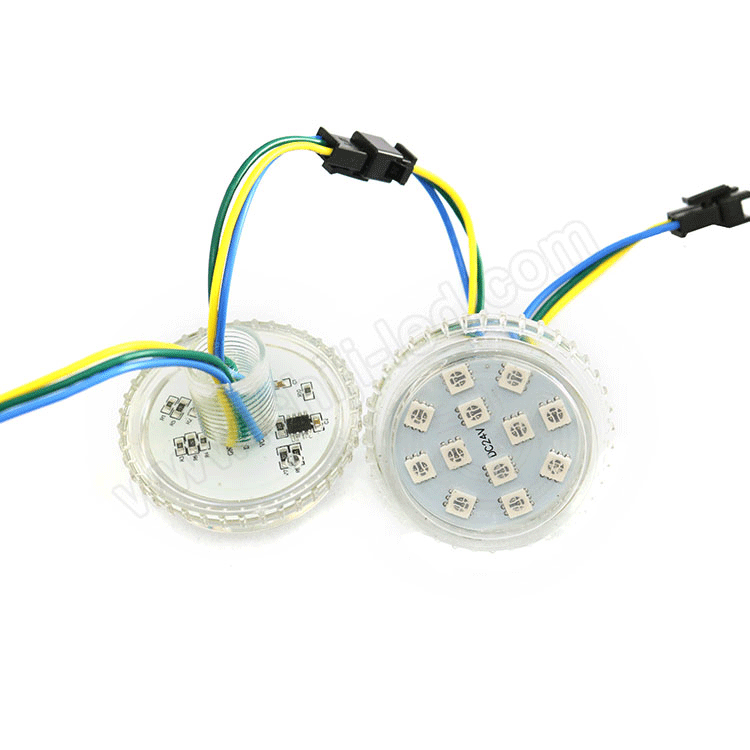

1.This is one new item with 50mm diameter, 12LEDs with one IC inside (ucs2903)
2.Colors and effects can be done optionally, such as running , chasing, jumping, scanning etc.
3.Combination: PVC shell (thermostability, cold-resistant, resistant to UV) , PCB board, connector cables.
4.Waterproof IP65/IP67, with silicon glue/ PU glue waterproof protection, non-waterproof or waterproof connectors.
5.Easy to install, better drill the hole 19-21mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Connectors: 3PIN JST female and male connectors, non-waterproof & waterproof for optional.


Parameter

P/N Diameter/mm LED Type Pixel/PCS Luminous Angle Voltage Wattage/m IP Rate
SJ-5012-24V
50mm
UCS2903-smd5050 12 Pixels/PCS 84 160° DC24v 2.88w IP65

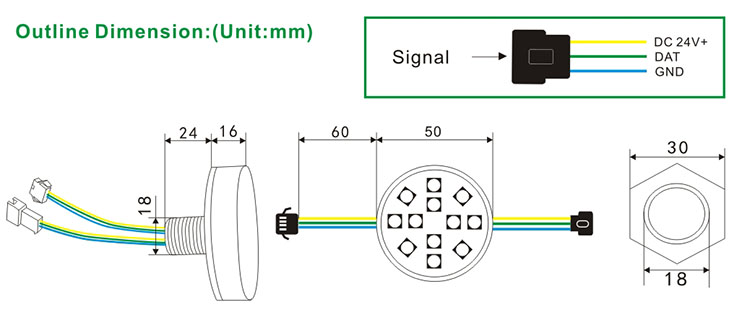

Dimension

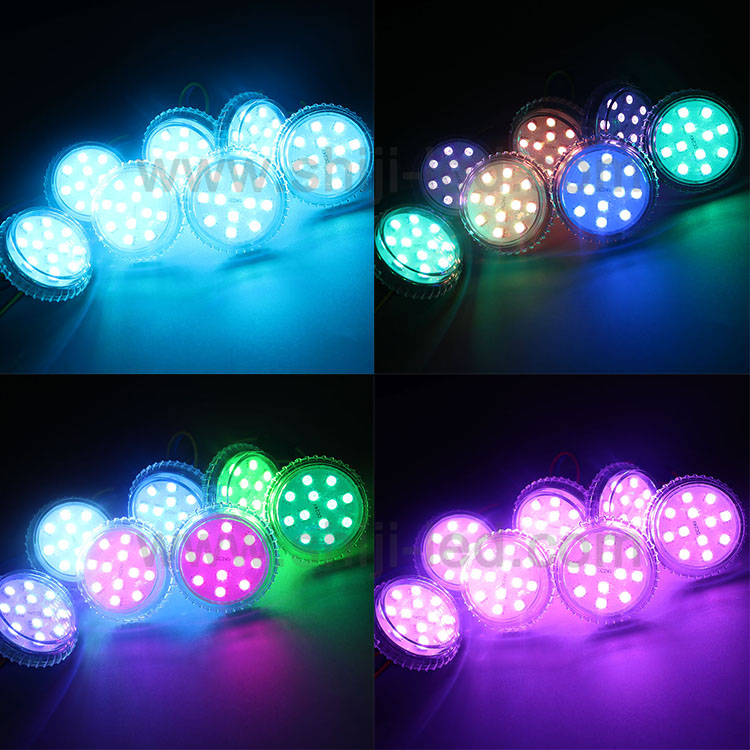

Effect:

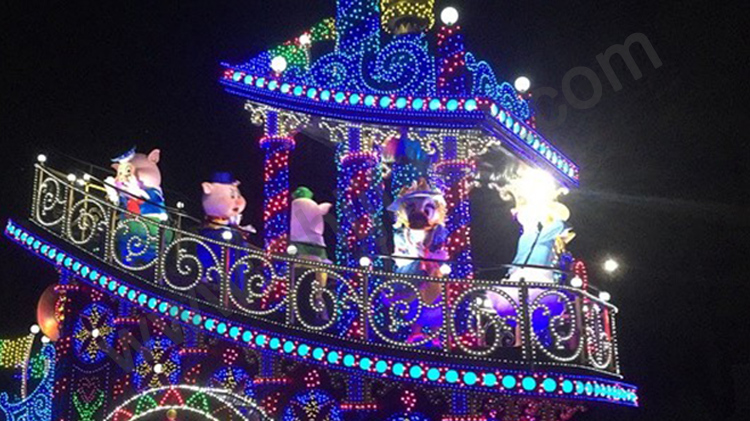

Project case

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
