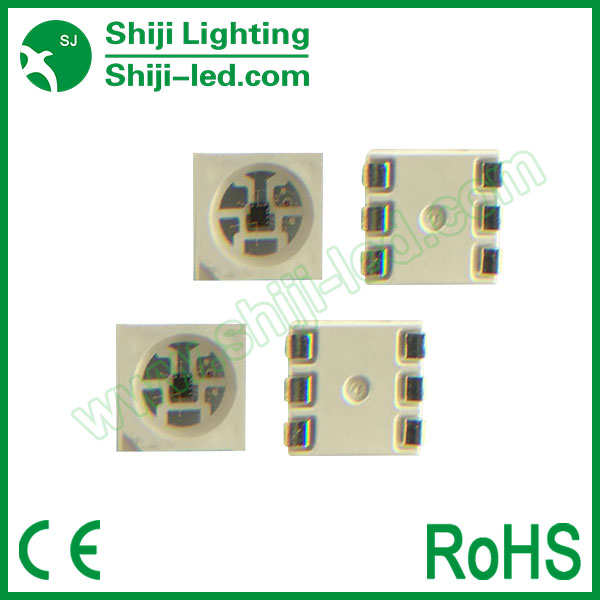

APA102C SMD5050 RGB APA102C SMD5050 RGB
APA102C SMD5050 RGB
APA102C for the three-color RGB LED dimming control string then IC‘ using the CMOS process‘ providing three-color RGB LED output driver to adjust the output with 256 gray-scale and 32 brightness adjustment APA102 with two-output way, the CLK signal by synchronization,so that the crystal cascadepiece of output movements synchronized.

General Description:

APA102C for the three-color RGB LED dimming control string then IC‘ using the CMOS process‘ providing three-color RGB LED output driver to adjust the output with 256 gray-scale and 32 brightness adjustment APA102 with two-output way, the CLK signal by synchronization,so that the crystal cascadepiece of output movements synchronized.

Application

LED LAMPS

Large LED screen

Led billboards

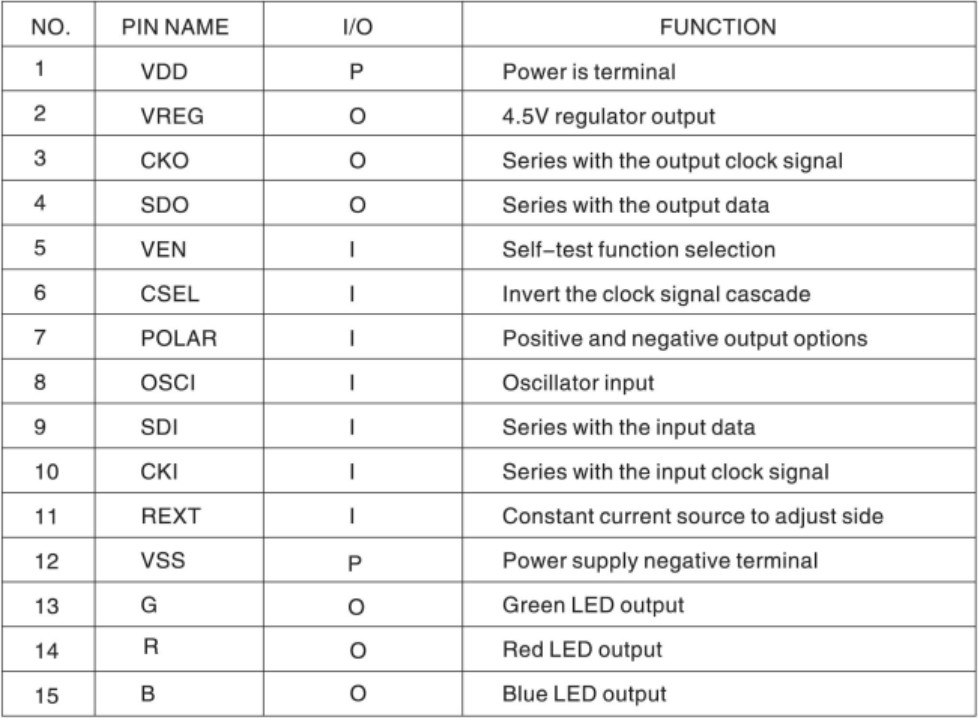

Pin description

Block Diagram
