20x20MM Neon Strip LED 5V 12V 24V Flexible LED light Neon Lighting

SJ-NHD-2020

Product Name :20*20 LED Flex Neon strip
LED Chip: SMD5050/2835/3535 RGB LED chip
Beam Angle :180 degree
PCB Width: 10mm
Operating Voltage: DC12V/24V
Emitting color: RGB/full color/single color are all available
Pixel (per meter) :30leds/m, 48leds/m, 60leds/m,1 20leds/m...etc.any strips if the PCB width is 10mm
Waterproof Rating: IP68
Length :1m, 2m, 3m, 4m, 5m, or longer
Warranty :2years
Certification :CE/ROHS


SJ-NHD-2020

Features
12*20 12v/24v Flexible digital Neon Strip
1.This digital Neon LED is made of Silicon material;
2 . Anti - UV, Anti - Corrosion and deformation resistance;
3 .Diffused color without any light spots, Emitting angle 180 Degrees;
4 .Standard 5 meters/ reel;
5. The cutting unit length is 50mm/12V, 100mm/24V per section;
6.Neon strips are usually 12V and 24V in monochrome, and 5V or 12V in full color, except for custom;
7.Waterproof IP65 Rated for outdoor installation

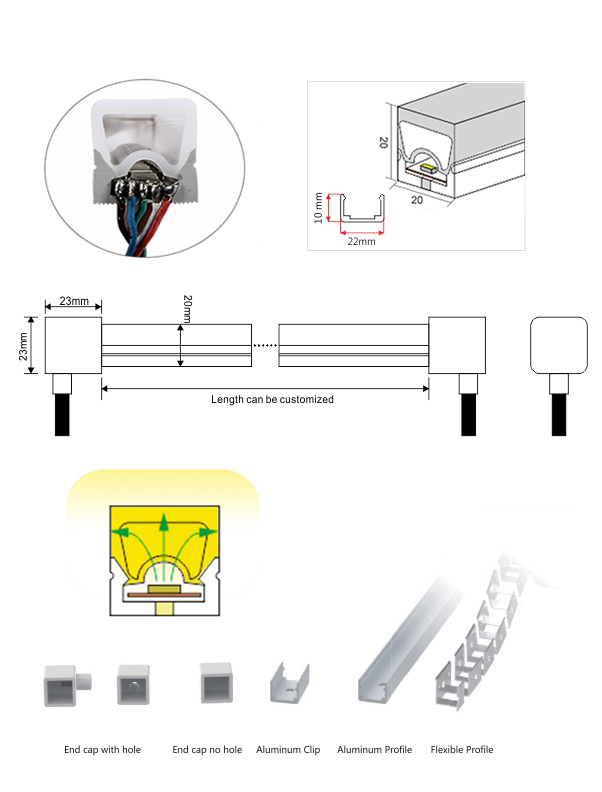

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-NHD-2020 20*20mm SMD5050 AU 112 180° DC5V/12V/24V  14.2W
IP65
