LED Neon
Neon Light 10x23MM Size Strip Address IP68 LED High Waterproof Building KTV Bar Light Neon Light 10x23MM Size Strip Address IP68 LED High Waterproof Building KTV Bar Light Neon Light 10x23MM Size Strip Address IP68 LED High Waterproof Building KTV Bar Light Neon Light 10x23MM Size Strip Address IP68 LED High Waterproof Building KTV Bar Light
Neon Light 10x23MM Size Strip Address IP68 LED High Waterproof Building KTV Bar Light

SJ-NHD-1023

SMD Type :SMD 5050
LED Qty/M :60
Voltage :DC5V/12V/24V
CCT RGBW:3000K/4000K/6000K
Control :UCS1903 /ws2811 / DMX512 and others
Luminance /M :R:315 G: 675 B:135W:830lm

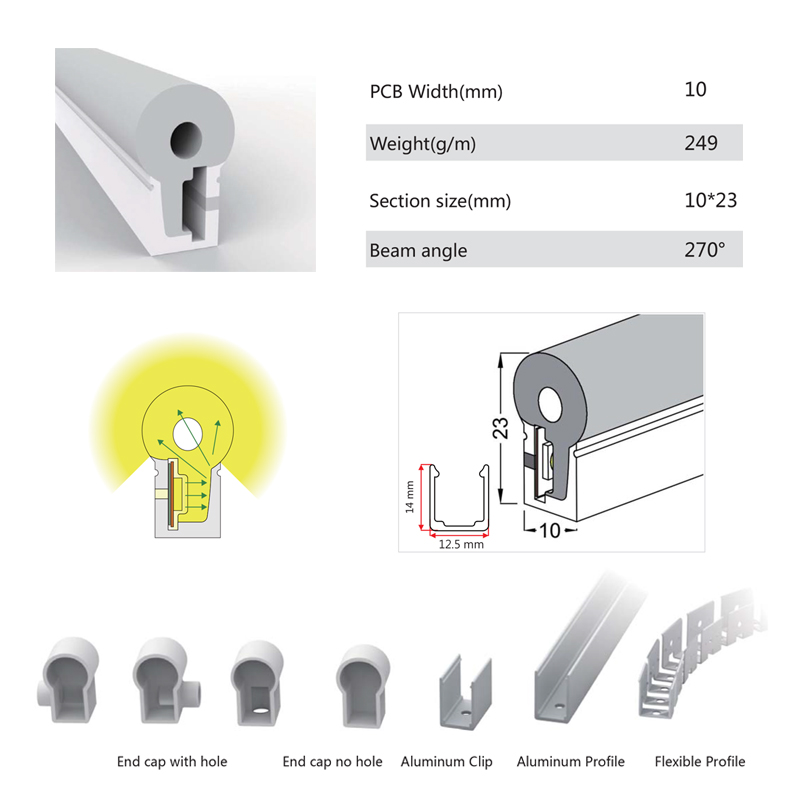

Dimension :5000*10*23 MM
Material :Silicon
Power :14.2W/M
Cutting unit :71.42 MM
Warranty :2-year
Certification :CE/ROHS


SJ-NHD-1023

Features
1. Addressable RGB LED Pixel neon strip for outdoor application. Strong silicon body, bendable in S shape.
2. SK6812 IC inserted in 5050 RGB leds, supporting numerous color-change effects.
3. Standard length is 1meter per piece. Customized length is workable.
4. easy to install with clips.
5. The connectors are waterproof, the whole strip is waterproof IP68
6. Controller system: SD card controller, DMX controller, Artnet and so on

Parameter
P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-NHD-1018 10*18mm SMD5050 AU 112 270° DC5V/12V/24V  14.2W
IP67/68/65
