LED Pixel Light
SJ-30-WS2801 SJ-30-WS2801 SJ-30-WS2801 SJ-30-WS2801

3pcs SMD 5050 RGB Lamps
DC12V input SPI signal

■. It can be used for KTV decorative lights.

■. It can be used for home lighting decoration.

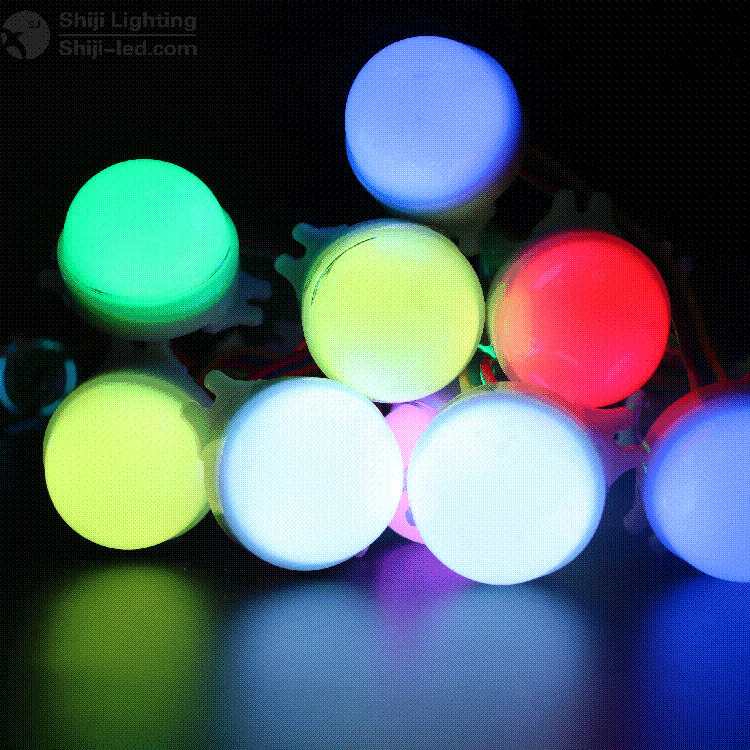

Digital ws2801 addressable dc12v 30mm RGB LED Pixel


1.RGB Pixels are digitally-controllable lights (addressable).

2.you can set to any color, or animate by microcontroller .

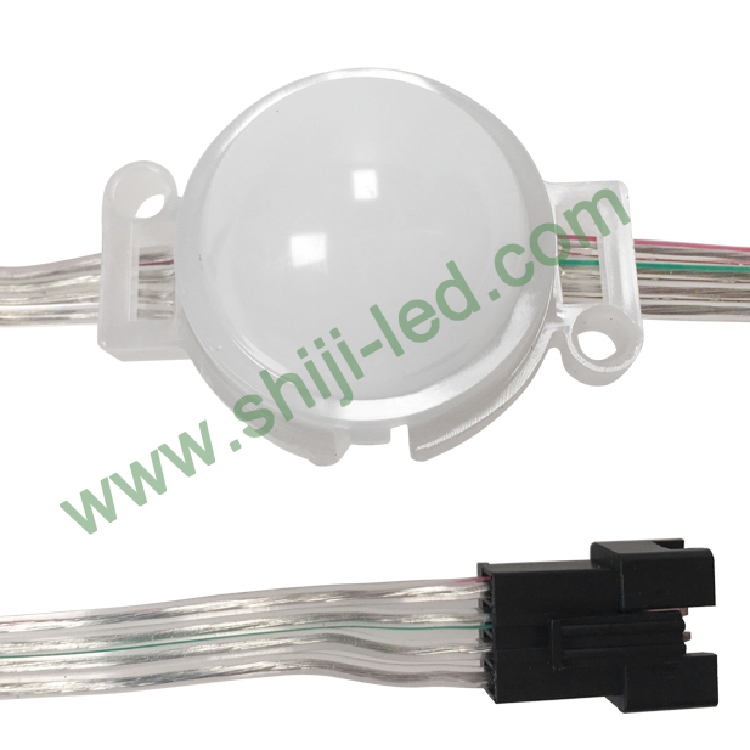

3.There are four flanges molded in so that you can ‘push‘ them into a 32mm drill hole in any material up to 1.5mm/0.06" thick but it have to put some silicon glue on the back side of the ears makes it more strong.

4.you may also install it on the wall and hold it by screw.

5.They‘re typically used to make outdoor signs.

6.The pixels are 20pcs per strand connected by 4Pin wire .

7.Data is shifted down from one pixel to the next so that you can easily connect to  the strand or attach more onto the end (we also could do custom cable length ).


P/N Diameter/mm LED Type Pixel/m Luminous Angle Voltage Wattage/PCS IP Rate
SJ-30-WS2801 30mm WS2801-smd5050RGB 3 Pixel/m 21 160° DC12v 0.72W IP20/65


Project case

-Led Amusement lamp is widely used in Ferris wheel, park, theme park, carnival, party,

-Super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank,

-Meeting room, exhibition hall, exhibition wardrobe, show window, living house,

-Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting
