LED Strip Light
GS8208 Addressable RGB Led Strip DC12V 30/60 LEDs/m GS8208 Addressable RGB Led Strip DC12V 30/60 LEDs/m GS8208 Addressable RGB Led Strip DC12V 30/60 LEDs/m
GS8208 Addressable RGB Led Strip DC12V 30/60 LEDs/m
P/N                                      SJ-10030/60-8208
Size/mm                               5000mm * 5mm
LED Type                              SMD 5050 RGB
LED/m                                  30/60 leds/m
Luminous                              240/480LM
Angle                                    120°
Voltage                                 DC12V
Wattage/m                            12/24W
IP Rate                                 IP20/IP67




SJ-10060-8208


Features

1. Addressable RGB pixel 5050 LED strip DC12V, each 5050 RGB LED is inserted into an ic chip 8208.

2. Signal breakpoint transmission, any pixel failure will not affect signal transmission unless two adjacent LEDs are broken.

3. PCB color: white and black.

4. Low voltage 12V DC input, do not exceed 12V, otherwise the light bar will be easily damaged.

5. Each LED can be cut and can be made into 30 lights per meter or 60 lights per meter.

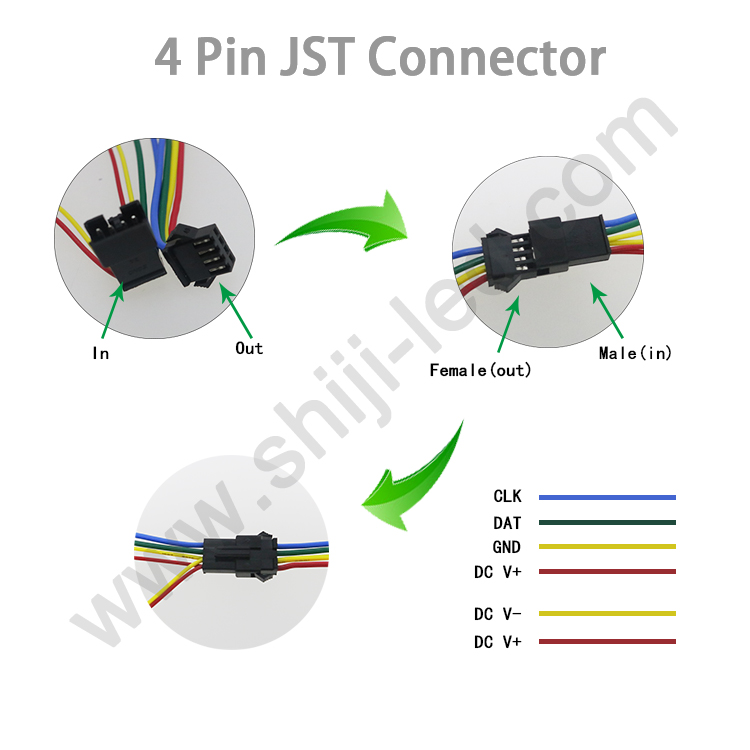

6.4PIN JST SM connector with both ends for signal transmission and two extra wires for power supply, also can be made with waterproof connector.

7. Controller system: SD card controller, Ardunio, DMX decoder, etc.


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10030/60-8208 5000mm*10mm SMD 5050 RGB 30/60 Pixel/m 24lm/420lm 160° DC12V 12W/24W IP20/65



Dimension

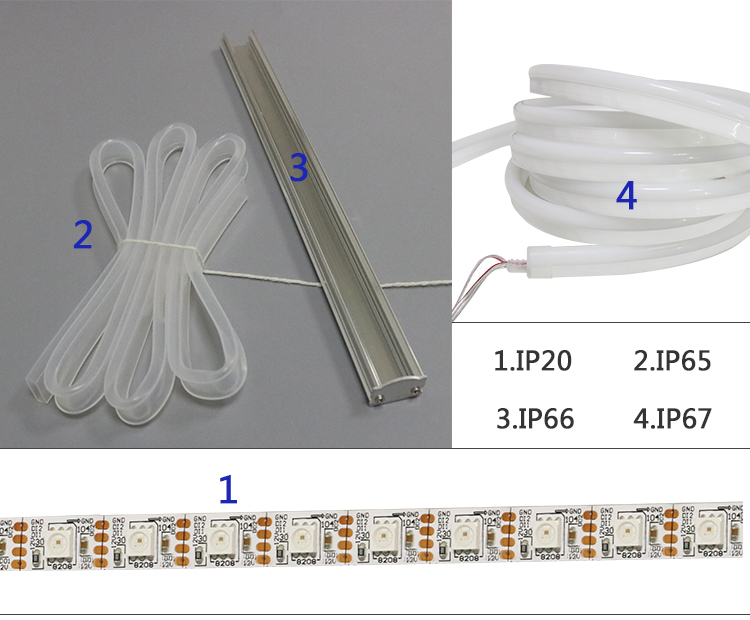

Waterproof  Level

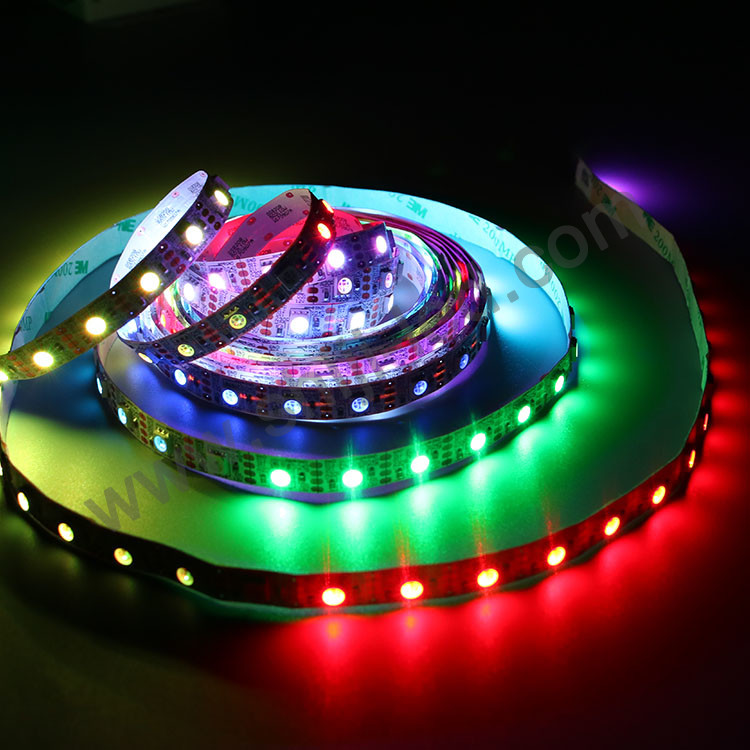

Effect:

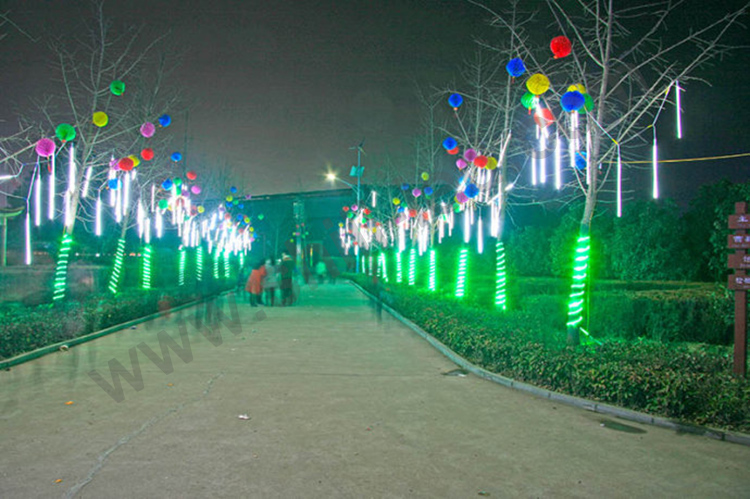

Project case

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
