LED Strip Light
SK6812 3535 RGB Led Strip 60pcs Leds/m SK6812 3535 RGB Led Strip 60pcs Leds/m SK6812 3535 RGB Led Strip 60pcs Leds/m
SK6812 3535 RGB Led Strip 60pcs Leds/m
P/N                                       SJ-10060-SK6812
Size/mm                               5000mm * 8mm * 2mm
LED Type                             SMD 3535 RGB
LED/m                                  30 leds/m
Luminous                              210
Angle                                    160°
Voltage                                  DC5V
Wattage/m                            18W
IP Rate                                 IP20/IP65

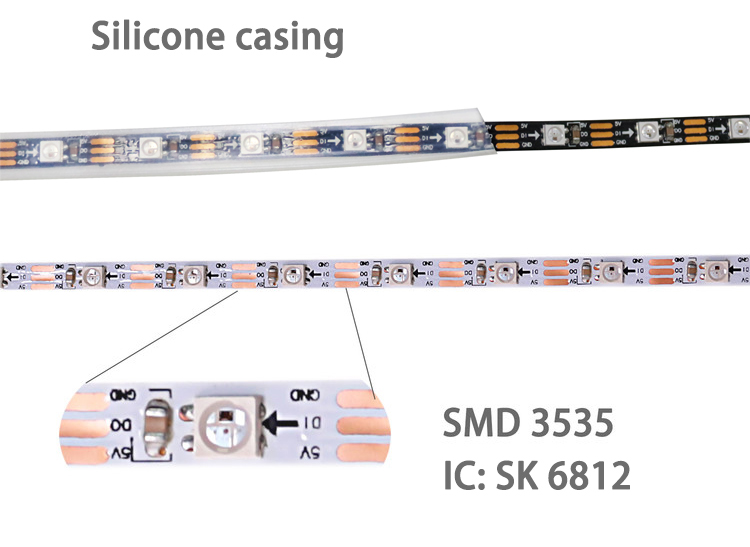

1. Control IC SK6812 inserted in MINI 3535 RGB LED diode, supporting numerous color-change effects .
2. White PCB and black PCB optional .

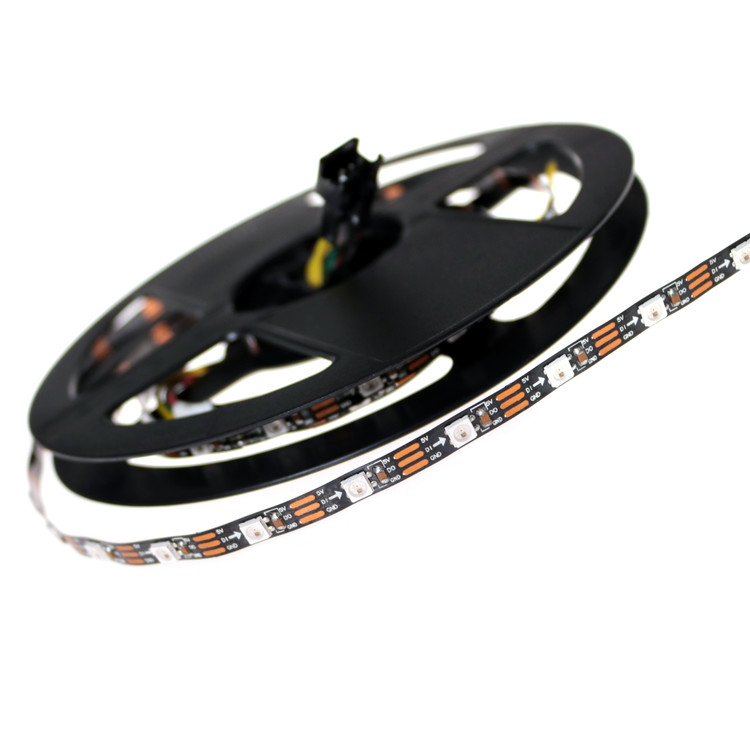

3. It comes in 2.5 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

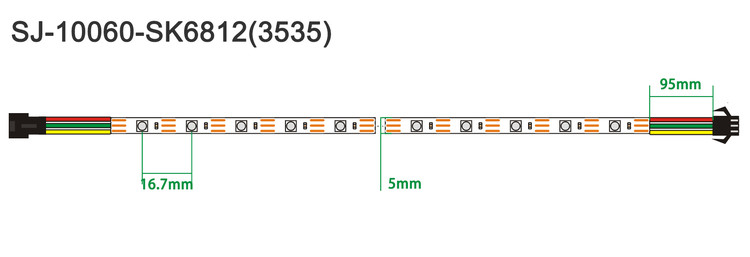

4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 16.7mm.
5. 60LEDs/M . 5V low voltage inputted , don‘t over 6V , otherwise you will destroy the entire strip .

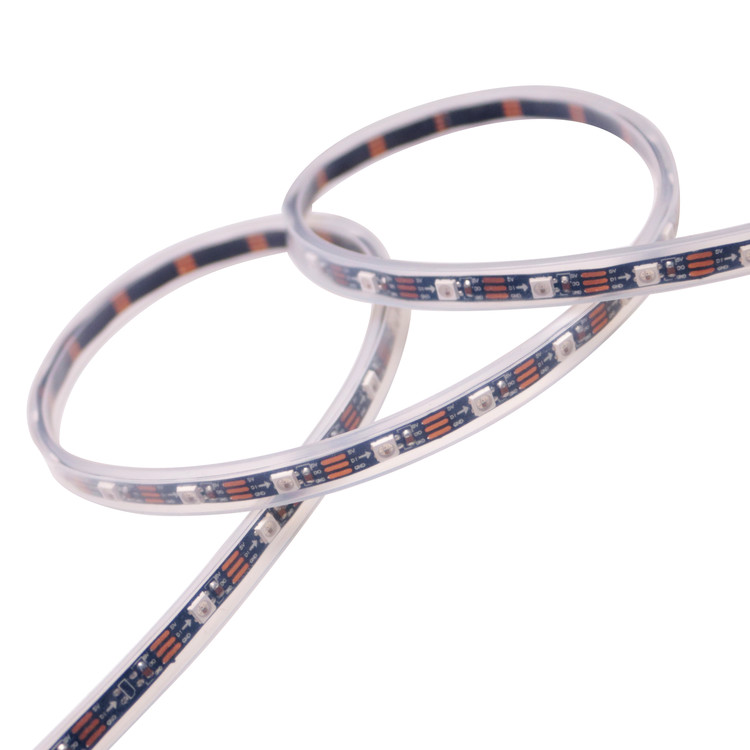

6. 5mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 7.5mm width , 4mm thick with silicon tube for waterproof type .
7. It is only Date Pin for signal transfer , no Clock Pin .
8. Controller System:SD controller , DMX controller , Artnet and so on .


P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-SK6812-3535 5000mm*8mm SK6812 3535 RGB 60 Pixel/m 420 160° DC5V 14.4W IP20/65


Project case

back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

Video Show :
