SK6812 5050 RGB Led Strip 30pcs Leds/m SK6812 5050 RGB Led Strip 30pcs Leds/m SK6812 5050 RGB Led Strip 30pcs Leds/m
SK6812 5050 RGB Led Strip 30pcs Leds/m
P/N                                     SJ-10030-SK6812
Size/mm                              5000mm * 5mm * 2mm
LED Type                             SMD 5050 RGB
LED/m                                 30 leds/m
Luminous                              210
Angle                                   120°
Voltage                                 DC5V
Wattage/m                           9W
IP Rate                                 IP20/IP67




SJ-10030-SK6812


Features

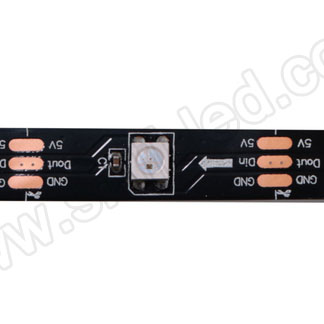

1. Control IC SK6812 inserted in 5050 RGB LED diode, supporting numerous color-change effects .
2. White PCB and black PCB optional .
3. It comes in 5 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 33.33mm.
5. 30LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

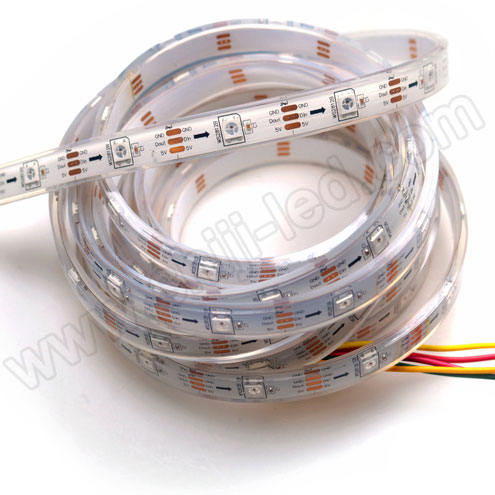

6. 10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon tube for waterproof type .
7. It is only Date Pin for signal transfer , no Clock Pin .
8. Controller System:SD controller ,  Artnet and so on .


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10030-SK6812 5000mm*10mm SK6812 5050 RGB 30 Pixel/m 210 160° DC5V 9W IP20/65

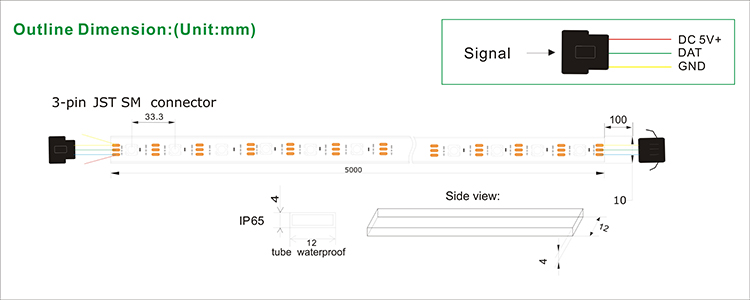

Dimension

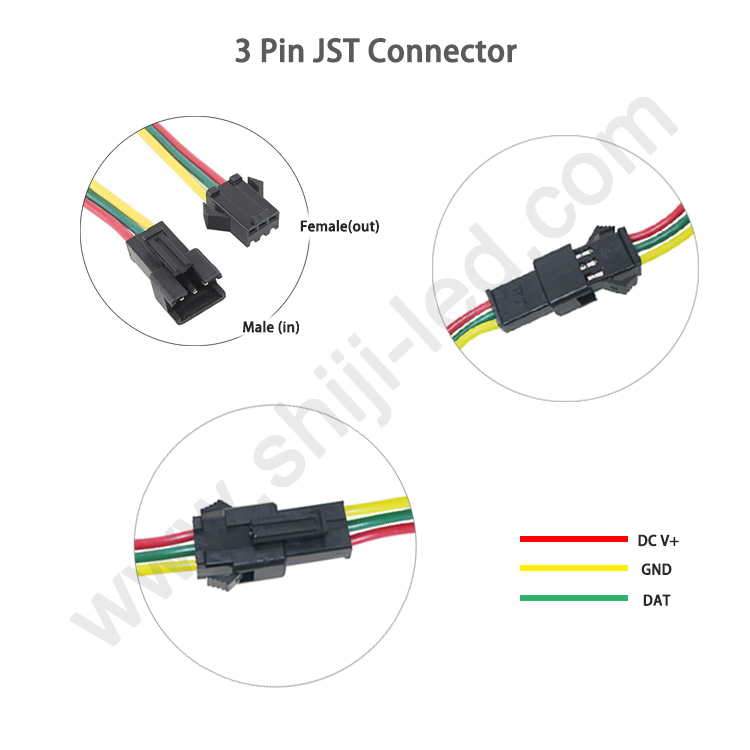

● Wire Define
There is 3 Pin JST SM female/male connector on both end for signal input/output ;
Green : Date ;
Red : +5V ;
Yellow: Ground
