LED Strip Light
SK6812 5050 RGBW Pixel Flexible LED Strip 60leds/m SK6812 5050 RGBW Pixel Flexible LED Strip 60leds/m

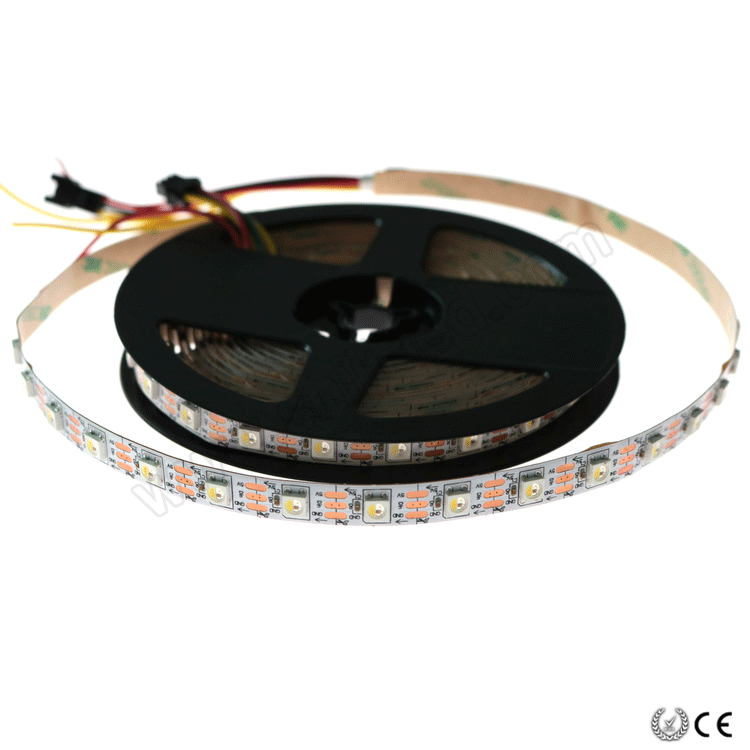

SK6812 5050 RGBW Pixel Flexible LED Strip 60leds/m
P/N                                      SJ-10060-SK6812-RGBW
Size/mm                              5000mm * 10mm * 2mm
LED Type                              SMD 5050 RGBW
LED/m                                 60 leds/m
Luminous                             560LM
Angle                                  160°
Voltage                                DC5V
Wattage/m                           24W
IP Rate                                IP20/IP65




SJ-10060-SK6812-RGBW


Features

1. Support a variety of control systems, such as Madrix, Bluetooth controller, mobile APP, WIFI control, etc.

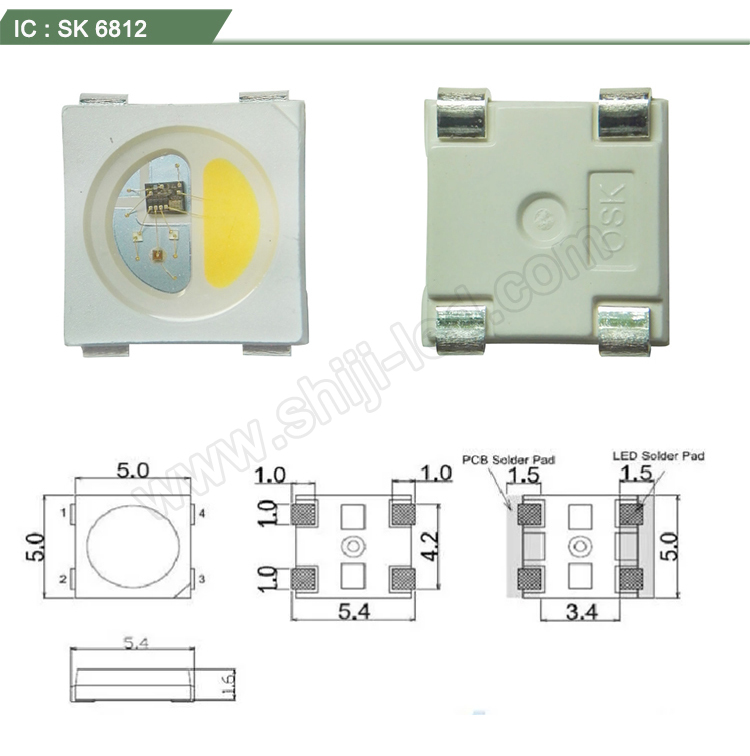

2. The LED of the product is SK6812 SMD 5050 RGBW. It contains R, G, B, W4 channels.


3. Each SMD 5050 RGBW LED is matched with one SK6812 IC.


4. Each LED is independent and can be cut


5. Each LED is addressable and controllable.


6. PCB Color: Available in white and black.


7. The recommended length is 5 meters per roll. The length can also be customized according to your needs.


Parameter

P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate
SJ-10060-SK6812-RGBW 5000mm*10mm SK6812 5050 RGBW 60  Pixel/m 540 160° DC5V 14.4W P20/65

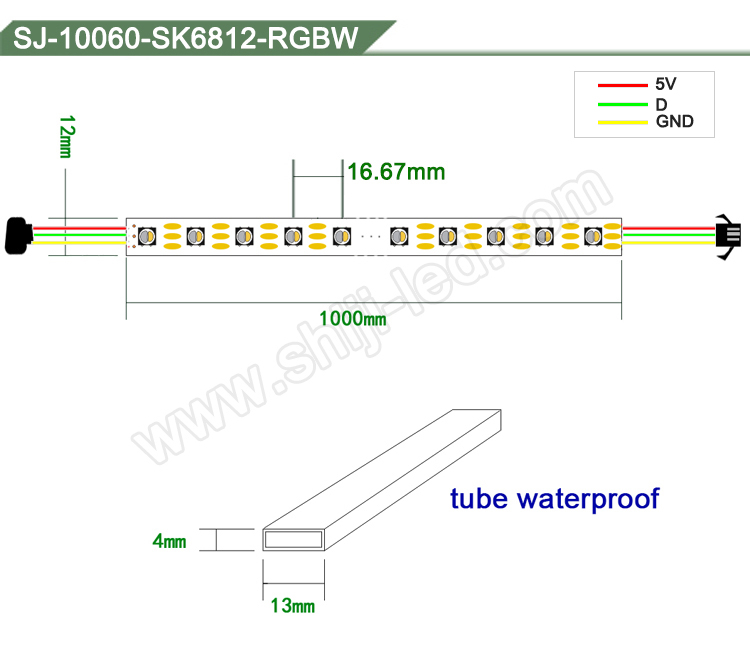

Dimension

● Wire Define
There is 3 Pin JST SM female/male connector on both end for signal input/output ;
Green : Date ;
Red : +5V ;
Yellow: Ground
