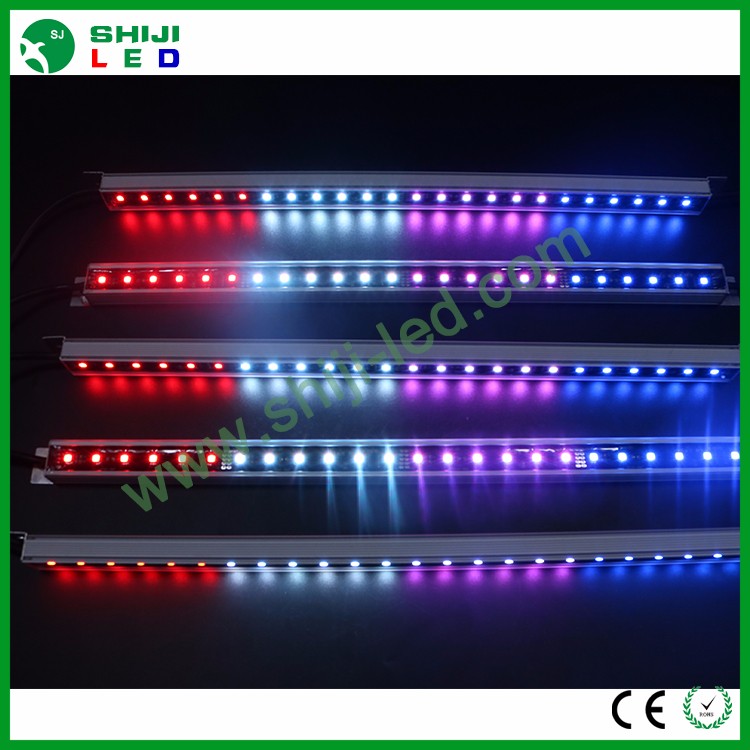

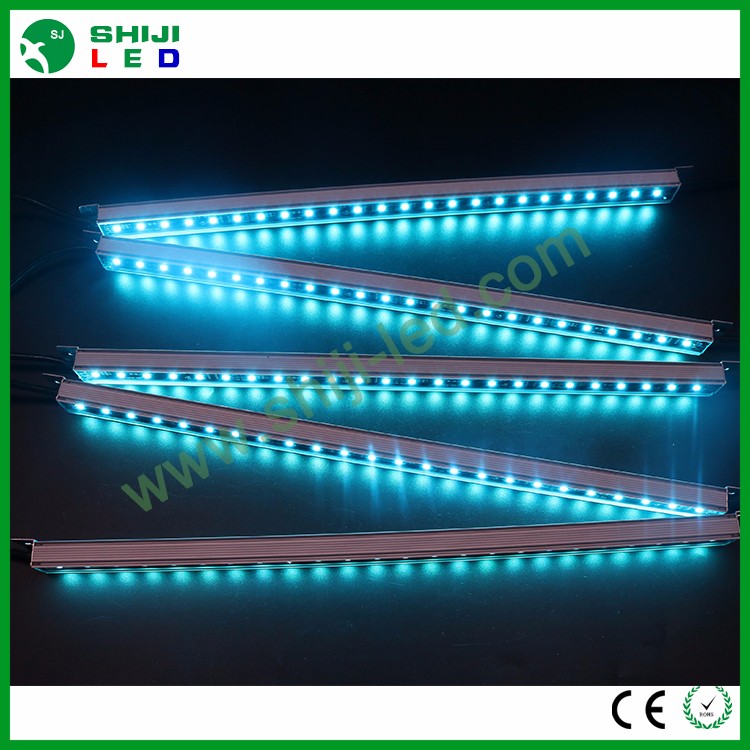

DMX512 48 leds SMD5050 dmx led rigid bar multi color led light bar

QUICK DETAILS:

Product name

48 SMD5050 8pixels DMX bar lights with Madrix Software

Model no.

SJ-10048-DMX

Input voltage

DC12V

Power consumption

11.52W

Led type

SMD 5050 led lamp

Pixel

8 pixels per pcs

LED Qty

48 pcs per pcs

Pixel pitch

25mm

Grayscale

256

Emitting color

full color, pixel, digital, magic, dream color, changeable.

Dimension

27*1000mm

Lifespan

50000Hrs

Material

Aluminum alloy

Working temperature

-40 - 60degree centigrade

Beam angle

140degree

IP degree

IP65

Certificate

CE & RoHS

Brand name

SJ

Control system

DMX console, Madrix, DMX controller, Artnet

SPECIFICATION:

1-Standard DMX512 Control LED line, powered by high bightness Epistar LED chip

2-The aluminum case very strong in 27mm width, 48mm high, in silver color

3-Every bar included 2pcs move-able aluminum Holder, but you have to prepare screw by self when installation

4-there are 2pcs waterproof connector output from back side of the case, make it possible to do no-slot joint

5-PCB width:20mm, in black color, it‘s cuttable every pixel 12.5cm length

6-This DMX bar not auto-addressable, you have to write the DMX address by the writer we provided

7-Protrol by standard DMX512 controller/Artnet

8-48 SMD5050 8pixels DMX bar lights with Madrix Software.



Controller:

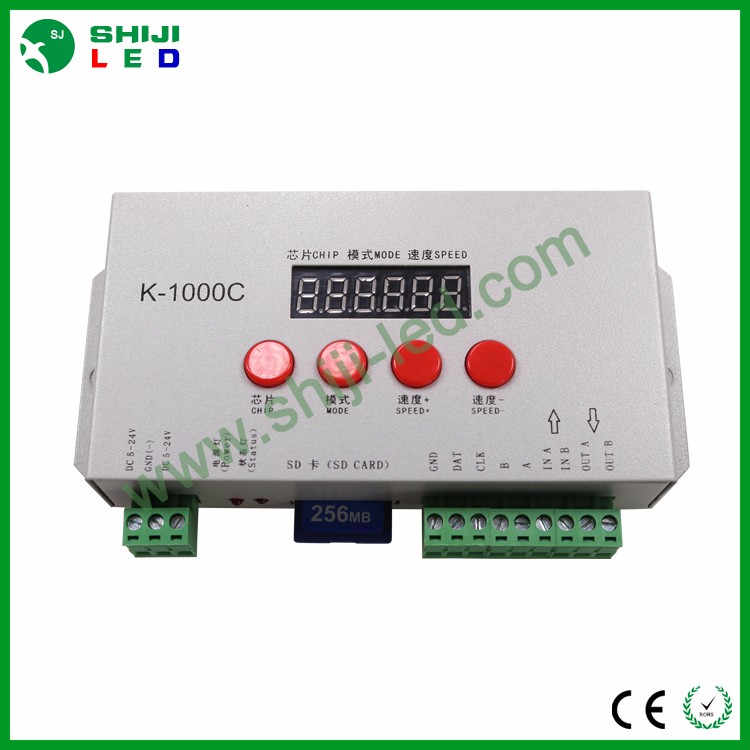

SJ-K-1000C

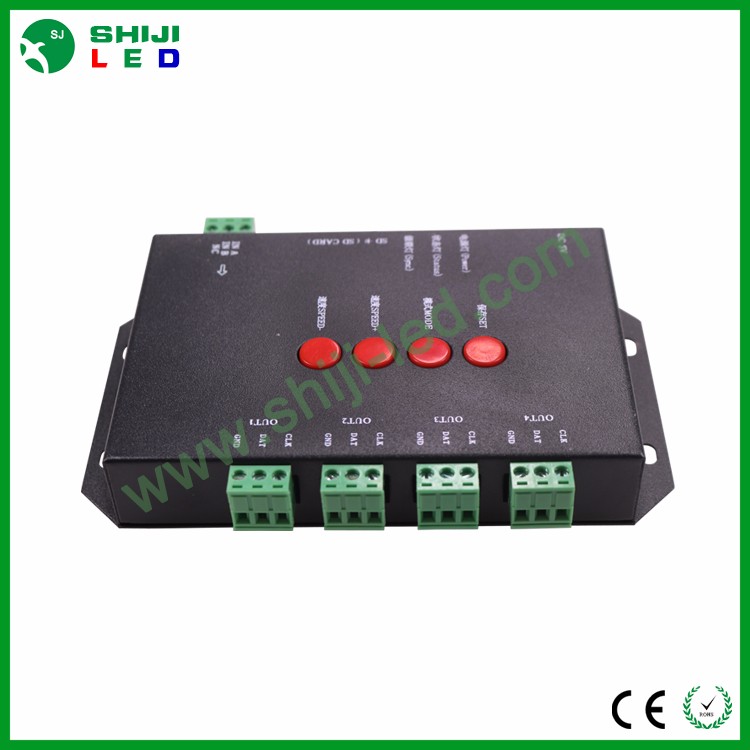

SJ-K-4000C

Effect:

1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as led display screen to show image and video
