DMX512 24V 96 Leds 16 Pixels 3535 RGB Led Digital Addressable Linear Light Bar DMX
Part NO SJ-10096-DMX-24V
Lighting Source SMD 3535 RGB LED diode
Beam Angel 180 degree
Operate Voltage DC24V
Consumption Watt/M 23 Watt (max)/M
LEDs/m 96LEDs/m
Pixels/m 16Pixels/m
IC chip UCS512 ( Standard DMX512)
PCB Color Black
Size 20mm (W) *38mm (H)*1000mm(L)
Aluminum color Black
Length 0.5m, 1m, 1.5m, 2m
Waterproof Grade IP66/IP67
Working temperature -20℃-60℃
Storage temperature -30℃-80℃
Certificate CE&RoHS
Warranty 2 years


SJ-10096-DMX512-24V


Features

1. The led bar is standard DMX512 protocol, ucs512 IC chip included, directly work with Artnet

DMX controller and Madrix.

2.The whole bar is waterproof IP67, good for outdoor& indoor application.

Designed with good quality aluminum case. Injected with good PU A/B glue.

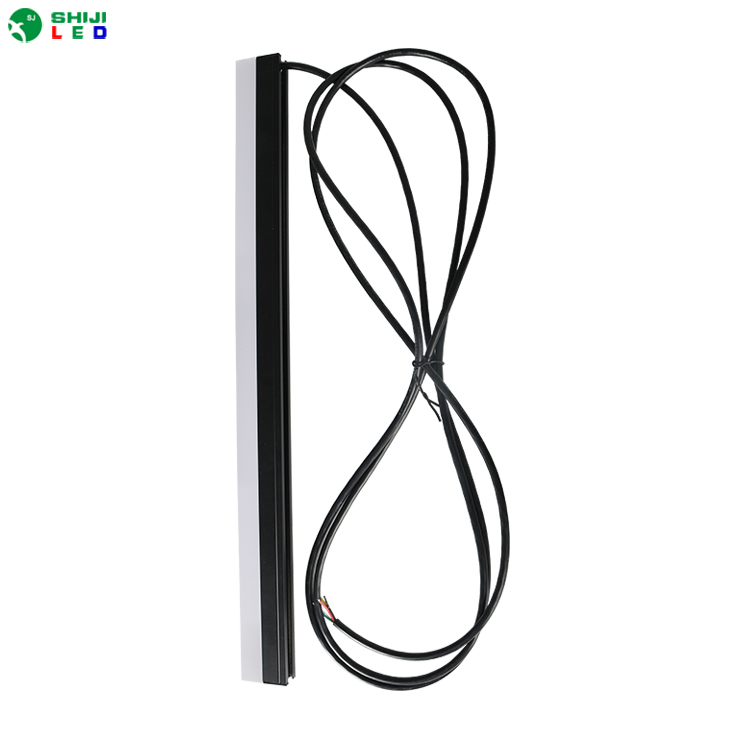

Assembled with a pair of waterproof female/male connector.

3. 96leds/m, 16pixels/m, 1IC control 6leds as a segment, 6leds change color together.

RGB 3 channel, 1meter led bar has 48 channel address.

4. Low voltage  DC24V input, no polarity protection, don’t over 25V or short circuit,

otherwise you can destroy the led light.

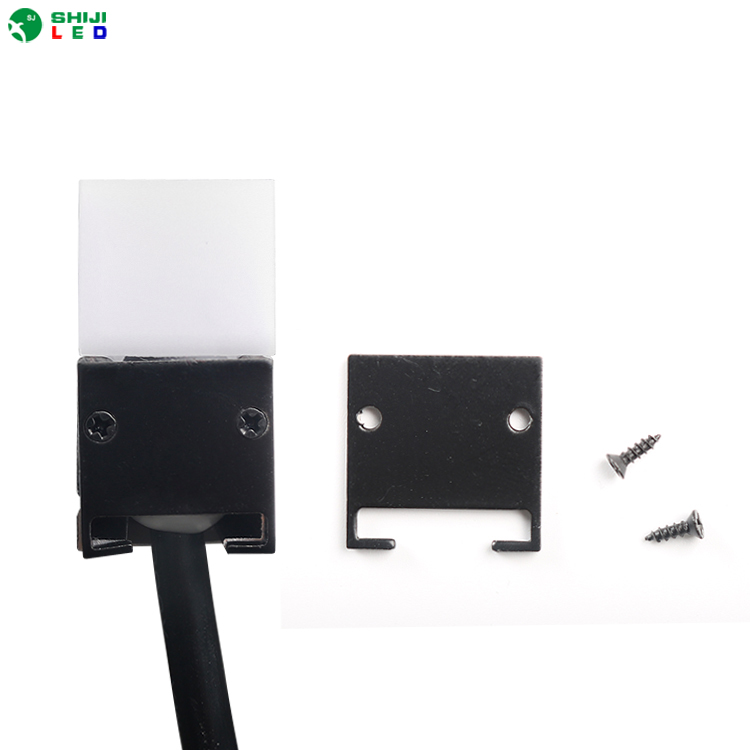

5. Each bar included 2pcs moveable aluminum holder for installation.

6. The bar is not auto-addressable, need DMX code writer to write the address.

7. The led bar didn‘t attach any T cable connectors for power feeding, it request to purchase seperately. And we recommend every 5M bar supply power.

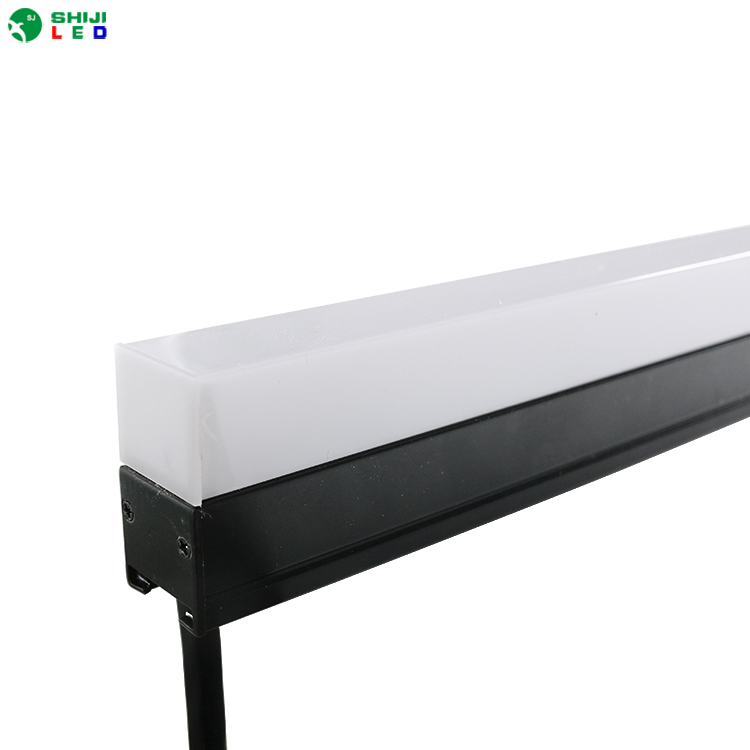

8. There are two options: one is Aluminum housing without PVC cover, the other is Aluminum housing with PVC cover.

9. 0.5m, 1m, 1.5m, 2m is workable.


Parameter

P/N Diameter/mm LED Type IC Type Luminous Angle Voltage Wattage/PCS IP Rate
SJ-10096-DMX512-24V 20*38mm SMD 5050 RGB AU 112 180° AC24V 11.52W IP67


Dimension
