SJ-10030-WS2801 SJ-10030-WS2801 SJ-10030-WS2801
■. It can be used for KTV decorative lights.

■. It can be used for home lighting decoration.

■. It  can be used to create LED advertising logo.

■. It can be used for stage lighting decoration.

■. It can be used for entertainment lighting

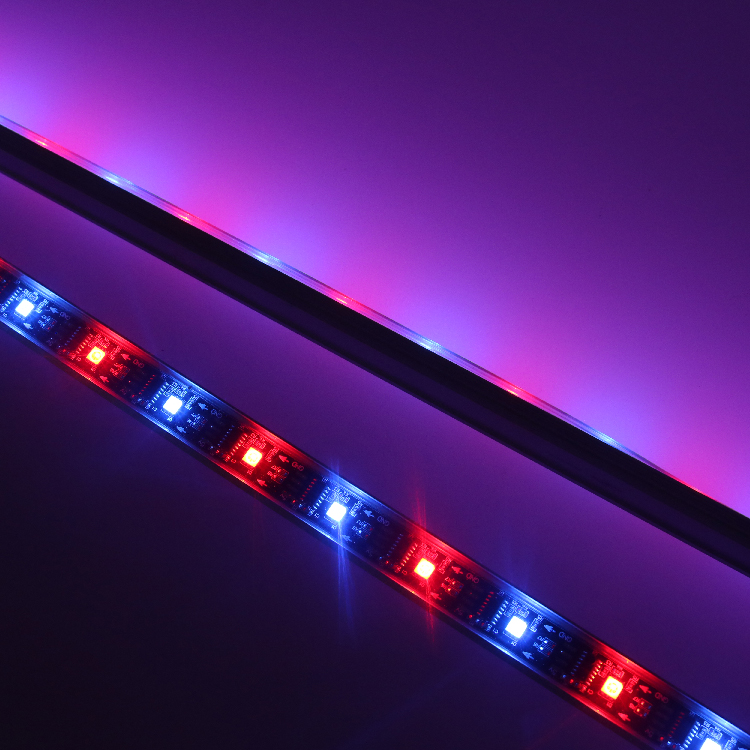

Digital smd5050 led bar light

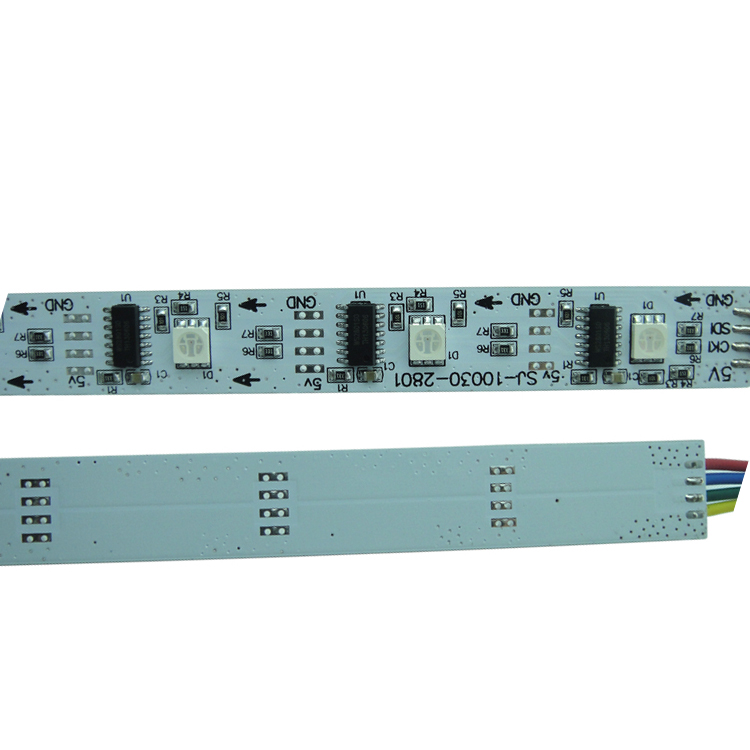

1. Controllable ws2801 IC included,1 IC control 1leds

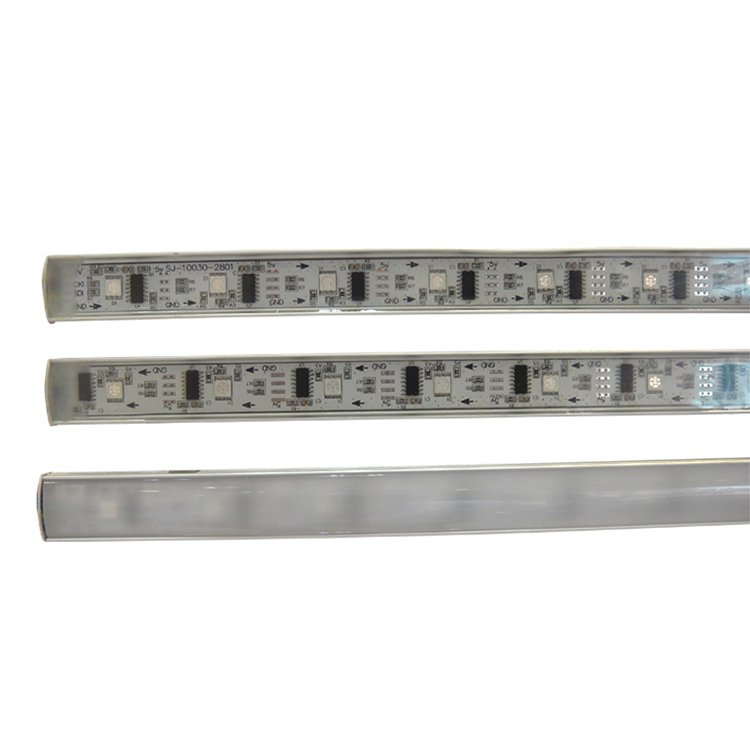

2. Each LED bar is constructed of high grade Aluminum

to provide an adequate heat sink to ensure an efficient, long and bright LED life.

3. Each rigid LED bar light is supplied with an input and an output cable. The input cable can be connected with a 12V power supply or another rigid bar, the output cable can connect with another LED light bar or can be removed to end the circuit.

4. additional extension cables can be plugged into the circuit for installations that require longer cabling between components of the circuit.

5. Ws2801 IC chip is DAT and CLK work separately, the effects is better than ws2811ic/1903 ic chip.

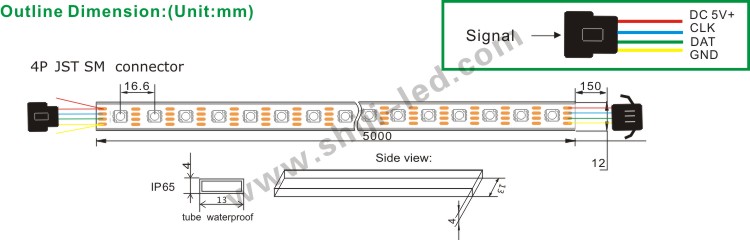

6. 4pin waterproof connector soldered in each end of the bar, you have to use T style connector for repowering every 5meters-(waterproof bar).
7. Each bar included 2pcs metal clips and 2pcs screw for installation.

8. High brightness: Led rigid strip consists of high quality LED and  high Luminous Flux

9. Extended life: With little heat, proper drive characteristics and high quality LED, Led rigid strip has a life time of more then 50,000h

10. Energy saving: Led rigid strip consumes low energy than the conventional lamps

11. ws2801 IC module which has a variety of work mode. It can realize monochrome, spotlights, flowing water, full color changes, and other effects.


P/N Size/mm LED Type Pixel/m Luminous Angle Voltage Wattage/m IP Rate


Epistar smd 5050 30 Pixel/m 1056lm/2640lm(max) 160° DC12v 7.2w IP20/65


Project case

-Led Amusement lamp is widely used in Ferris wheel, park, theme park, carnival, party,

-Super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank,

-Meeting room, exhibition hall, exhibition wardrobe, show window, living house,

-Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.
